Consumption S-Band Radar in Three Coordinates with Pulse Doppler Technology and ≤30W Power Consumption

Certification : ISO

Model NO. : GM0923A012

Installation Mode : Ground Steel Bracket or Tripod

Application : Industry, Special Equipment

External Interfaces : Rj-45

Power Consumption : ≤30W

Transport Package : Aviation Box Packaging

Specification : X Band

Trademark : OME acceptable

Origin : China

HS Code : 8526109090

Supply Ability : 100pieces/Year

Customization : Available

Type : Sensor

Usage : Security Warning and Protection

MOQ : 10

Place of Origin : China

Brand Name : OEM

Contact Now

Model NO.	GM0923A006
Working system	Phased array system (azimuth scanning+elevation scanning)/pulse Doppler
Working band	S Band
Range of Radar	10.2km
Effective detection range	100m~10.0km(UAV; Drone)
Azimuth coverage	360°
Elevation coverage	≥40°
Detection speed	1.0m/s~85m/s
Azimuth accuracy	≤0.8°
Pitch accuracy	≤1.0°
Distance accuracy	≤10m
Data rate	≥0.2Hz
Data interface	RJ45/1 1CH Ethernet 10/100M port
Input power	≤250W(power dissipation) AC200-AC240(input)
Working temperature	-40ºC~+55ºC

Weight (N.W)	≤60kg

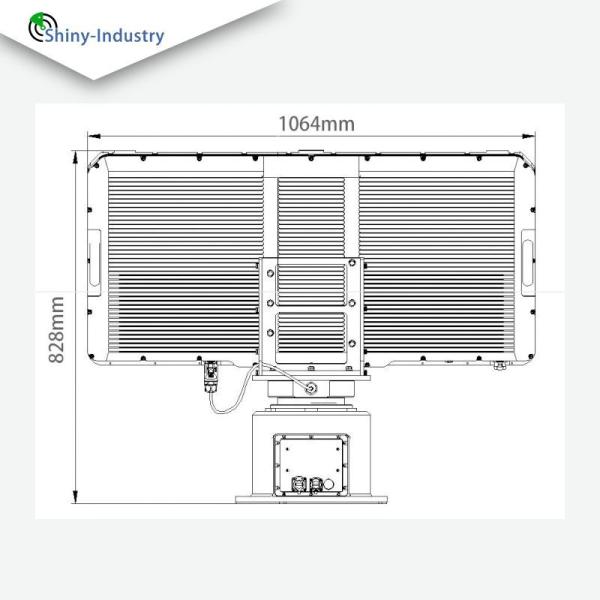

Structural dimensions	1064mm282mm370mm

Consumption S-Band Radar in Three Coordinates with Pulse Doppler Technology and ≤30W Power Consumption

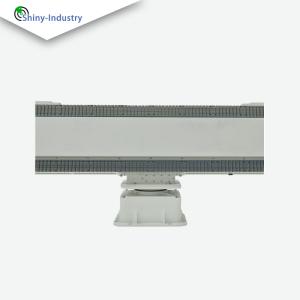

The XW/SR226-10200S is mainly composed of one radar array, one mechanical turntable, and one power adapter. It is used for the detection, surveillance, and target indication of micro/small civilian drones in key areas such as borders and perimeters. It can accurately provide trajectory information such as target orientation, distance, altitude, and speed.

Product features:

High real-time and high precision: anti clutter, continuous trajectory, high precision, able to output target coordinate information.

Strong adaptability to the environment: possessing the ability to work 24/7 and adapt to harsh environments such as night, rain, snow, haze, and dust.

High flexibility: Long range detection of targets, easy installation.

DBF technology: DBF technology can improve anti-interference ability by transmitting multi beam technology.

High cost-effectiveness: By continuously improving the product, while ensuring detection effectiveness, we achieve a perfect combination of product reliability, usability, and economy.
